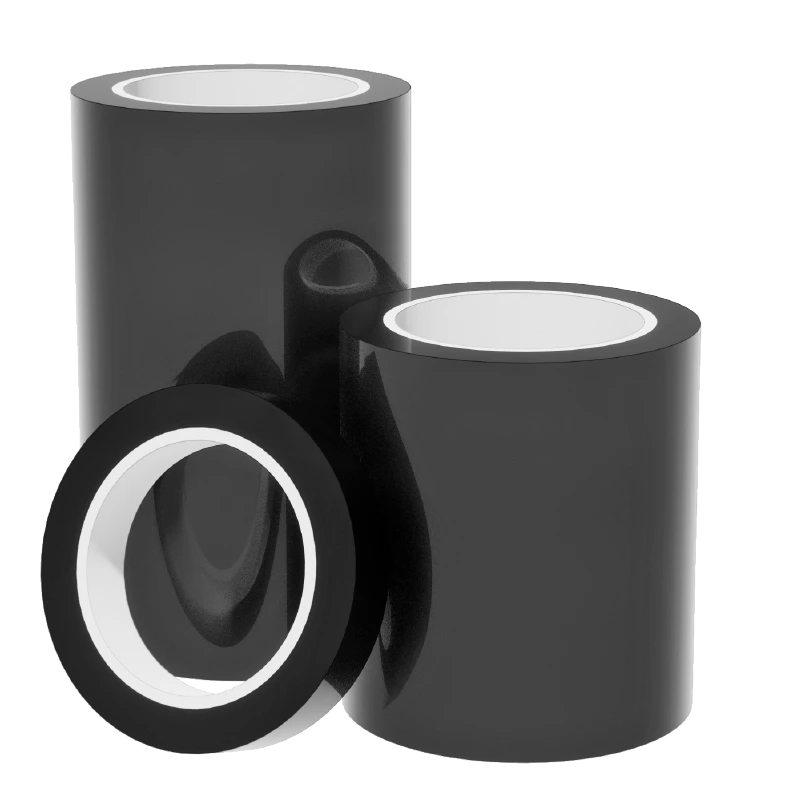

Light-blocking tape

This product uses a black polyester film substrate, offering excellent light-blocking properties and die-cutting performance. It is primarily used for bonding LCD and backlight modules.

Features

● Multiple adhesive strength formulations (high, medium, low) to meet the surface requirements of different substrates.

● For electronic products with PC substrates, the surface remains smooth and free of bubbles after high-temperature aging.

● Pure black PET substrate ensures excellent light-blocking properties while maintaining good die-cutting performance.

INQUIRY

Applications

: Adhesion, light-blocking, and insulation for mobile phone LCDs and backlight modules

: Adhesion, light-blocking, and insulation for automotive center consoles and mid-to-large commercial all-in-one display devices.

: Adhesion, light-blocking, and insulation for product process labels and RFID smart tags.

Product Series

Model	Color	Thickness (µm)	Base material	Adhesive	Detypation	180 ° peel force (N/24mm)
CRT-DT0501BS	Black	50	Black PET	Acrylic acid	Transparent PET release film	≥ 9
CRT-DT0502BS	Black	50	Black PET	Acrylic acid	Transparent PET release film	≥16
CRT-DT0503BS	Black	50	Black PET	Acrylic acid	Transparent PET release film	≥14
CRT-DT0504BS	Black	50	Black PET	Acrylic acid	Transparent PET release film	≥12
CRT-DT0601BS	Black	60	Black PET	Acrylic acid	Transparent PET release film	≥14
CRT-DT1004BS	Black	100	Black PET	Acrylic acid	Transparent PET release film	≥15
