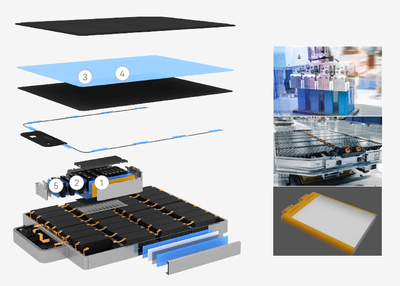

1 Battery insulation wrap 2 Mica bonding 3 PC chip bonding 4 Foam bonding 5 Bonding between cells

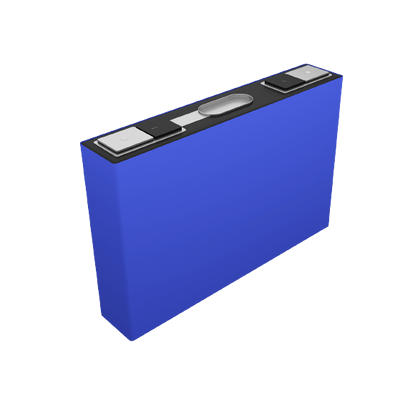

1 Battery insulation wrap

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

Universal Blue Film-Product Features

● Flame retardancy meets V0 (test with 2mm aluminum foil)

● Meet the electrical performance of national standard (leakage current, puncture strength, resistivity)

● The folded edge of the battery pasted at normal temperature and high temperature of 80 deg C does not spring off

● No adhesive residue after tearing at normal temperature for 7 days

● The tape has high viscosity

High Shear Blue Film-Product Features

● High shear strength, high viscosity, maintaining adhesion in complex stress environment

● Meet the electrical performance of national standard (leakage current, puncture strength, resistivity)

● Excellent aging resistance, still effectively protect the battery core in extremely changeable environment

● Electrical insulation characteristics superior to common wrapping tape

● Flame retardancy meets V0 (test with 2mm aluminum foil)

Easy Rework Blue Film-Product Features

● It has higher peeling force and shear force before UV, and the adhesive force is significantly reduced after UV, so it is easy to rework

● Has excellent electrolyte resistance

● Meet the electrical performance of national standard (leakage current, puncture strength, resistivity)

● Stable product performance, easy die-cutting, easy processing

● Flame retardancy meets V0 (test with 2mm aluminum foil)

Products	Model	Thickness (mm)	Adhesion to steel plate (N/24mm)	*Dynamic shear force (15mm 24mm) (Mpa)**	Flame retardant (laminated with 1mm aluminum sheet)	Surface dyne value (dyne pen)
Universal blue film	CL-8210-S	0.100	≥15	≥0.7	VTM-0	≥36
Universal blue film	CL-8311-S	0.105	8.75-17.5	/	VTM-0	≥36

Product name	Model	Thickness (mm)	Shear strength (Al) (Mpa)	180 ° peel force (RT20min, Al) initial	180 ° peel force (RT 20min, Al) N/24mm after curing	Leakage current (DC3150V) mA	Leakage current (AC2230V) mA	Puncture resistance (Kgf)	Insulation resistance GΩ
High shear blue film	CRT-DT1101LU	0.11	≥7	≥12	≥35	≤1	≤1	≥2	≥1
Product name	Model	Thickness (mm)	Shear strength (Mpa)	180 ° peel force (RT20min, Al) initial	180 ° peel force (RT 20min, Al) N/24mm after curing	Leakage current (DC3150V) mA	Leakage current (AC2230V) mA	Puncture resistance (Kgf)	Insulation resistance GΩ
Easy rework blue film	CRT-DT0803LU	0.08	≥7	＞12	≥32	＜1	＜1	≥2	≥1

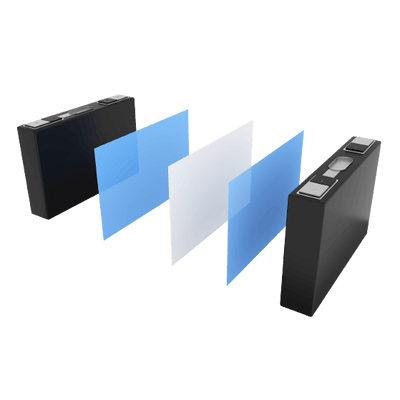

2 Mica bonding

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Ood soaking effect and excellent compliance to uneven surfaces

● The high viscous surface has good bonding effect with mica material.

● Easy die-cutting, die-cutting is not easy to glue

● Good tolerance to harsh environmental conditions

Products	Model	Thickness (mm)	Adhesion to steel plate (180 ° peeling, 20 min) N/24mm	Static shear force *(24mm24mm)min**	Initial adhesion (14 # steel ball) Chute method mm
Tissue tape	DS512YMH	0.14	≥16	≥100	≤100
PET tape	6929YMH	0.14	≥16	≥100	≤100

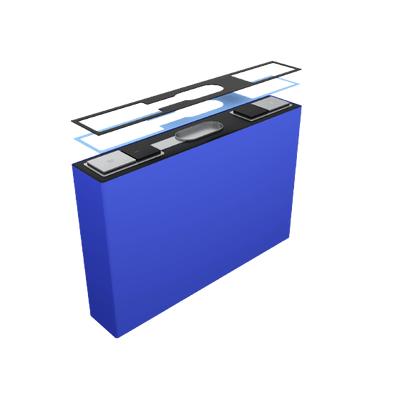

3 PC chip bonding

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

PC Chip tapes-Product Features

● Tape flame retardant meets VTM-0 or FMVSS302

● Die cutting without glue overflow after pasting PC chip

● Flat sticking at normal temperature and high temperature of 80 ℃ without bouncing

● Tape is halogen-free

PC Single Sided Tape-Product Features

● Adhesive solutions available depending on customer PC material

● Excellent adhesion and shear resistance

● Easy die-cutting, excellent dimensional stability

Products	Model	Thickness	Adhesion to steel plate (180 ° peeling, 20 min) N/24mm	Static shear force *(24mm24mm)min**	Initial adhesion (14 # steel ball) Chute method mm	Flame retardant standard mm
PC chip tape	DS31-6005FHA	0.05	≥5	≥100	-	VTM-0
PC chip tape	DS31-6012FH	0.1	≥10	≥30	≤180	VTM-0
PC chip tape	DS10BF	0.1	≥11	≥10	≤180	VTM-0

Products	Model	Thickness	Adhesion to steel plate (180 ° peeling, 20 min) N/cm	Static shear force min	Dynamic shear force 25 ℃ Mpa	Dynamic shear force 85 ℃ Mpa	Breakdown voltage kV
PC single sided tape	CRC-ST130BT	0.13	≥6	≥1440	≥0.4	≥0.1	≥3.5

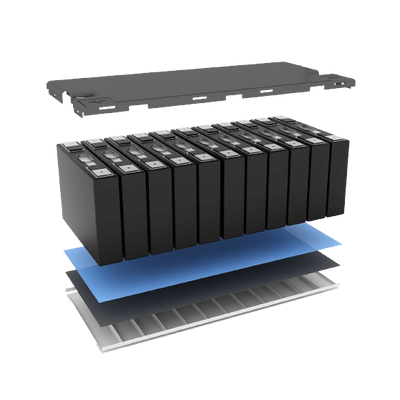

4 Foam bonding

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Tape flame retardant meets VTM-0 or FMVSS302

● Die cutting without glue overflow after foam is pasted

● Adhesive foam at normal temperature and high temperature 80 ℃ does not bounce

● Tape is halogen-free

Products	Model	Thickness	Adhesion to steel plate N/24 mm	Static shear force *(24mm24mm)min**	Initial adhesion (14 # steel ball) Chute method mm	Flame retardant standard
Flame retardant tape	DS10BF	140μm	≥17	≥100	≥5	VTM-0
Flame retardant tape	DS10BF	150μm	≥18	≥100	≥5	VTM-0

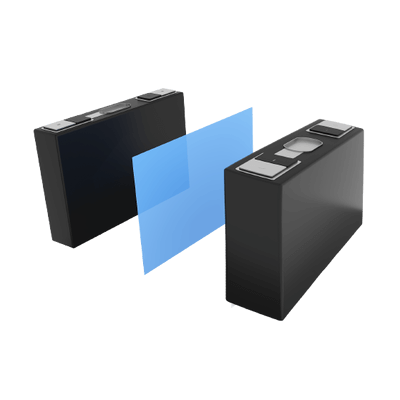

5 Bonding between cells

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Single-layer structure, with strong adhesion, suitable for metal, glass and some plastic surfaces

● It has strong resistance to static stress and dynamic stress, and can resist certain vibration and impact.

● It has strong aging resistance, can resist high temperature, low temperature, ultraviolet rays, humidity, solvents and so on, and has a certain quarantine effect on the external environment.

● Has excellent waterproof performance

Products	Model	Thickness	Adhesion to steel plate 20min	Adhesion to steel plate 72h	Static shear force 80℃,500g	Dynamic shear force 20min	*Ring initial bonding (24mm 24mm)**
EPT	A7110FR	1.1mm	≥35N/24mm	≥40 N/24mm	≥1440 min	≥300 N	≥30 N
