Kunpeng provides high-performance bonding solutions for smart wearable devices and other IoT products, working with industry users to build a smarter life.
Explore adhesive material applications in the AIoT industry
Application Products
Application Products - Smart wear
From the product design and development stage to the large-scale production process, every link fully considers the stringent needs and unique characteristics of the home appliance industry to ensure that the bonding solutions provided can not only accurately adapt to various complex application scenarios.
SOLUTION CONSULTATION →

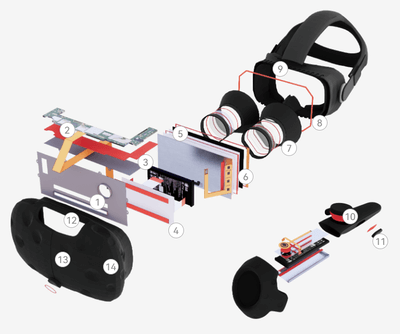

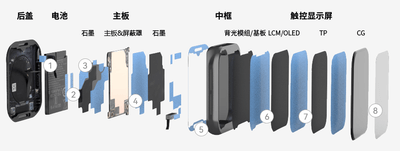

Smart Wear
1 The graphite sheet is bonded and fixed 2 Conductive shielding 3 The FPC is bonded and fixed 4 The components are bonded and fixed 5 Battery package 6 Optical bonding of screen module 7 Bonding of screen module frame 8 Lens fixed 9 Tructure buffer bonding 10 Bonding of fabric and plastic part 11 The rubber pad of the handle key is attached and fixed 12 Structural buffering 13 Overlay protection 14 Packing 15 Shipment protection

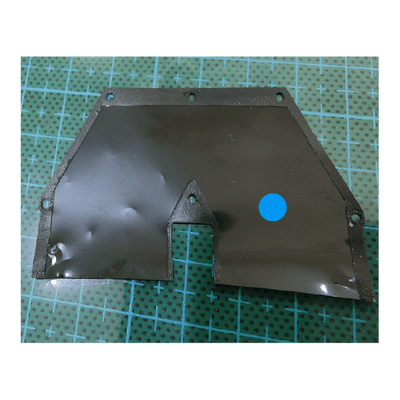

The graphite sheet is bonded and fixed

1 The graphite sheet is bonded and fixed

The graphite sheet is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The graphite sheet is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The graphite sheet is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The graphite sheet is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● High cleanliness
● Ultra-thin and high viscosity
● Die cutting processability
● Dimensional stability

Product advantages
● Adapt to highly clean assembly environment
● The heat dissipation effect of that graphite sheet is enhance, and the thickness of the electronic equipment is reduced
● Black masking effect
Products Model Thickness (μm) Carrier Color Adhesive 180 ° SUS peel force (N/cm)
High-clean PET double-sided tape DT76xxB 5-30 PET Black/Transparent/Black Translucent Acrylic acid 1.2-8

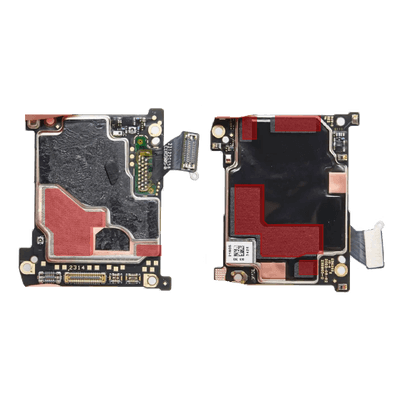

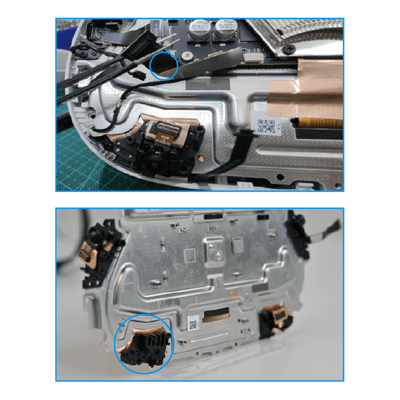

Conductive shielding

2 Conductive shielding

Conductive shielding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Conductive shielding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Conductive shielding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Conductive shielding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Ood XYZ three electrical conductivity
● Substrate-free conductive adhesive is available in release paper version
● Weaving Carrier is not easy to break
● High wettability of non-woven fabric substrates

Product advantages
● Achieve good electromagnetic interference shielding
● Easy to die cut and use
● Woven substrates are suitable for curved surface bonding, processing and bonding with dimensional stability.
● Non-woven substrate is more compliant
Products Model Thickness (μm) Carrier Adhesive 180 ° peel force (N/25mm) Z-axis vertical resistance (Ω/inch ²)
Conductive adhesive film ED0xH 10-100 No substrate Conductive acrylic 7-19 <0.03
Conductive non-woven tape EMx301 20-100 Conductive non-woven fabric Conductive acrylic 6-15 <0.02
Conductive plain woven tape EMx201 30-200 Conductive plain woven cloth Conductive acrylic 10-18 <0.05

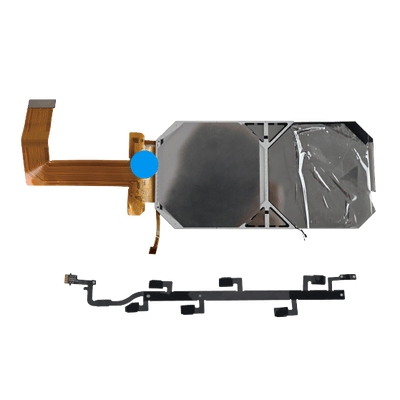

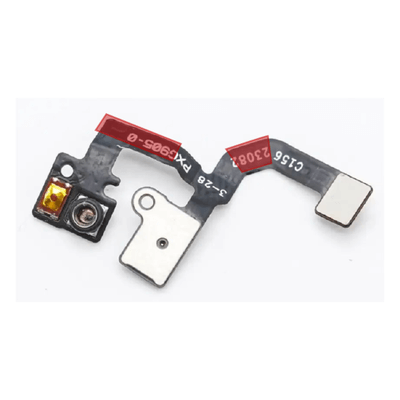

The FPC is bonded and fixed

3 The FPC is bonded and fixed

The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Super aging resistance and high temperature resistance
● Excellent PET rebound resistance
● Excellent bonding strength
● High shear resistance

Product advantages
● Coping with high temperature scenarios
● Good fit, no warping
● Strong adhesion, suitable for various surfaces
● Ffectively prevent colloid slip
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm)
High performance PET tape P89721G/P89821G 50/120 PET Acrylic acid 4-8
High-performance substrate-free adhesive tap N506/N513 60/130 No substrate Acrylic acid 5-7

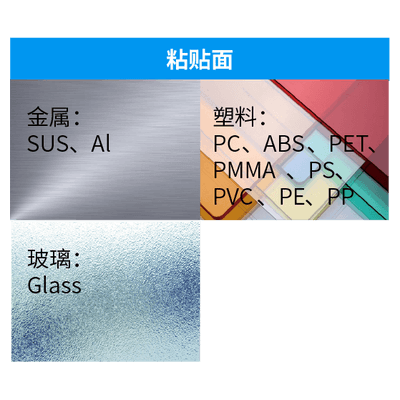

The components are bonded and fixed

4 The components are bonded and fixed

The components are bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The components are bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The components are bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The components are bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● And that universality is strong
● Excellent bonding strength
● Excellent rebound resistance
● High shear resistance

Product advantages
● Suitable for pasting various surfaces
● The bonding is firm and durable
● Good fit, no warping
● Ffectively prevent colloid slip
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm)
PET double sided tape P89721G/P89821G 50/120 PET Acrylic acid 4-8

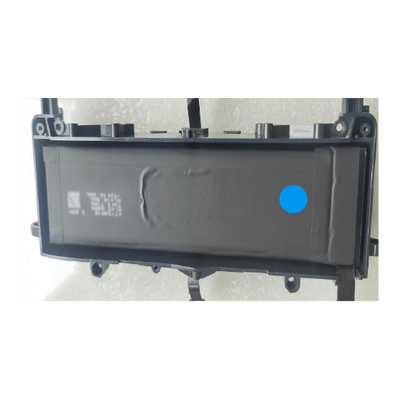

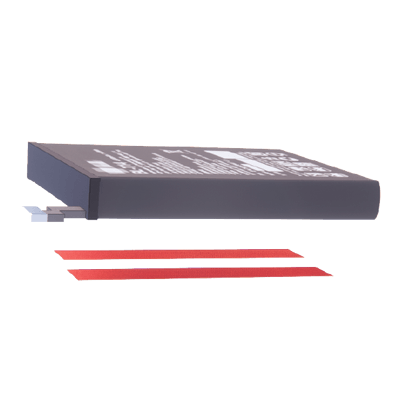

Battery package

5 Battery package

Battery package
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Battery package
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Battery package
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Battery package
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Flame retardant, insulating, high voltage resistant
● Adhesive properties
● Resistance to static shear
● Can be directly printed

Product advantages
● Security protection
● Firmly pasted without warping
● Reduce label-pasting process
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm)
PI single sided tape CRI-STx 10-50 PI Acrylic acid 1.2-6

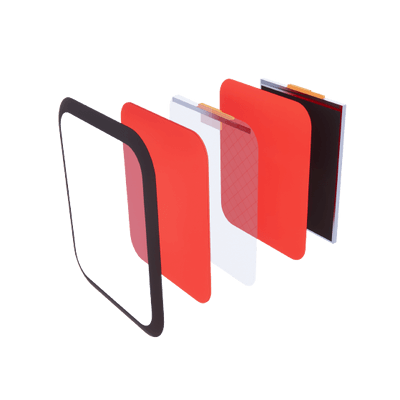

Optical bonding of screen module

6 Optical bonding of screen module

Optical bonding of screen module
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Optical bonding of screen module
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Optical bonding of screen module
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Optical bonding of screen module
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Acid-free colloid
● Excellent segment filling ability
● Excellent processing operability
● Excellent defoaming effect
● Excellent reliability

Product advantages
● No through bubbles after vacuum lamination
● No bubble rebound after standing for 24h after defoaming
● No bubble, atomization, yellowing and other phenomena in 1000h
Products Model Thickness (μm) Adhesive Yellow variable B * Haze Transmittance (%) Reliability
85℃X85% / 40d		 Reliability
95 ℃ high temperature/40d		 Reliability
-40~80℃ / 40d
OCA CR-934xN 100-200 Acrylic Adhesive <0.4 <0.4 >90 PASS PASS PASS

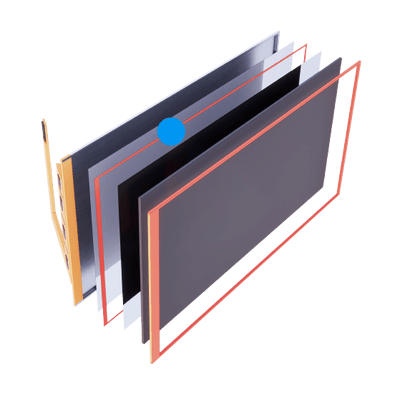

Bonding of screen module frame

7 Bonding of screen module frame

Bonding of screen module frame
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Bonding of screen module frame
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Bonding of screen module frame
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Bonding of screen module frame
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● The viscosity is excellent
● Xcellent stress dispersion effect
● Cushioning and seismic performance
● Sealing and waterproof performance

Product advantages
● (EPT foam) for stable permanent fit in multiple environments
● (Foam can be removed) Rework stripping without adhesive residue
● Effectively reduce the impact force when the equipment falls.
● Fitted waterproof, no light leakage
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm)
Removable PU foam tape CRU-DM3407BB 850 PU foam composite substrate Acrylic acid >6
EPT acrylic foam tape A7xxBT/BR 200-1100 Acrylic closed-cell foam Acrylic acid 25-50

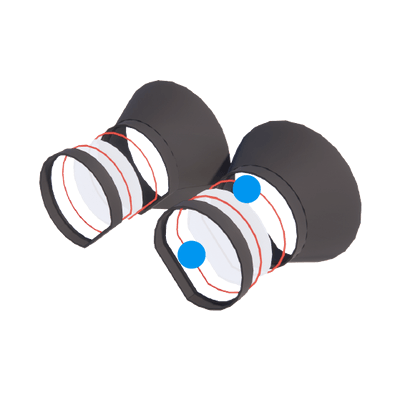

Lens fixed

8 Lens fixed

Lens fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Lens fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Lens fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Lens fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Good stress absorption and excellent cushioning performance
● High bonding strength

Product advantages
● Anti-seismic buffer
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm) Static shear force (min)
EPT acrylic foam tape A7xxBT/BR 200-1100 Acrylic closed-cell foam Acrylic acid 25-50 >1440
PET double sided tape P89721G/P89821G 50/120 PET Acrylic acid 45390 >1440

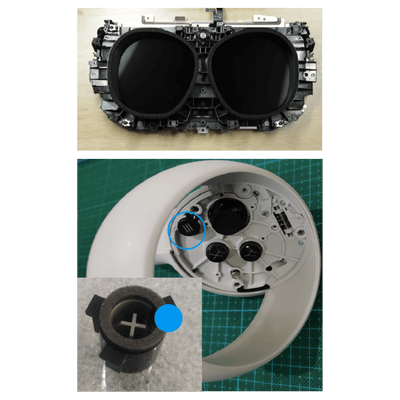

Tructure buffer bonding

9 Tructure buffer bonding

Tructure buffer bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Tructure buffer bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Tructure buffer bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Tructure buffer bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● The bonding strength is high
● Seismic performance
● Sealing performance (EPT)

Product advantages
● Firm bonding
● Achieve structural cushioning and drop resistance
● Waterproof seal
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm) Static shear force (min)
EPT foam tape A7xxB Series 200-1100 Acrylic closed-cell foam Acrylic acid 25-50 >1440
PE foam tape DP02xxG Series 100-500 PE foam Acrylic acid 16-26 >1440

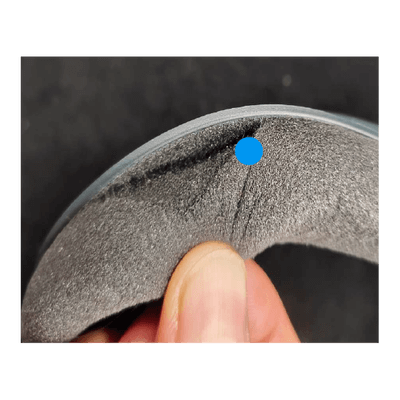

Bonding of fabric and plastic part

10 Bonding of fabric and plastic part

Bonding of fabric and plastic part
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Bonding of fabric and plastic part
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Bonding of fabric and plastic part
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Bonding of fabric and plastic part
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● High resistance to dynamic shear and shock
● Excellent compliance
● The foam wettability is good

Product advantages
● No warping, durable, suitable for curved surfaces
● Fabric and foam shall be bonded.
Products Model Thickness (μm) Adhesive 180 ° SUS peel force (N/cm) Static shear force (min)
Substrate-free double-sided tape N506N/N513H 60/130 Acrylic Adhesive ≥5 >10000

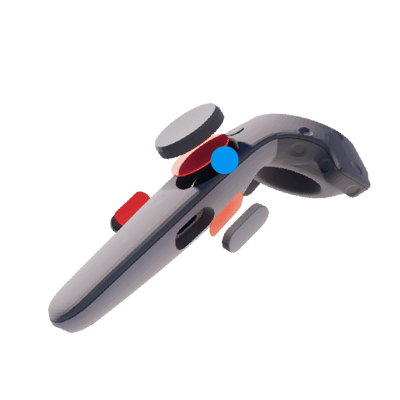

The rubber pad of the handle key is attached and fixed

11 The rubber pad of the handle key is attached and fixed

The rubber pad of the handle key is attached and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The rubber pad of the handle key is attached and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The rubber pad of the handle key is attached and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The rubber pad of the handle key is attached and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Different adhesive systems on both sides/ silica gel, acrylic adhesive
● Dimensionally stable
● Excellent shear resistance

Product advantages
● Silicone glue has a good adhesive effect on silicone rubber, which can be pasted immediately without primer
● Provides dimensional stability and better handling during die cutting and bonding
Products Model Thickness (μm) Carrier Adhesive 180 ° peel force (N/cm)
AB double-sided tape ABxxTF 50-140 PET Silicone/Acrylic 4.5-16.6 SUS        5-8.3 Si
Structural buffering

12 Structural buffering

Structural buffering
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Structural buffering
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Structural buffering
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Structural buffering
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Stable bonding strength
● Good stress absorption and excellent cushioning performance
● High design flexibility

Product advantages
● The bonding is firm and durable
● Anti-seismic buffer
● Thickness, density, compressive strength material
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm) Static shear force (min)
PU foam single-sided tape SUxxB 150-2000 PU foam Acrylic acid 3-10 >1440

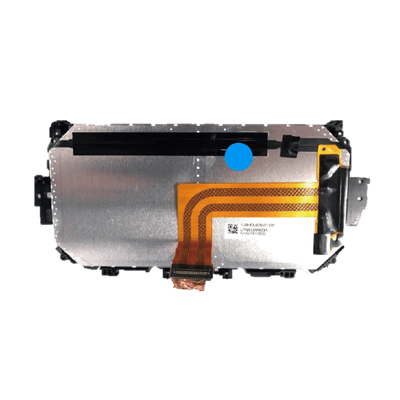

Overlay protection

13 Overlay protection

Overlay protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Overlay protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Overlay protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Overlay protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Ultra-thin and high viscosity
● Low thermal resistance
● Die cutting processability

Product advantages
● Evenly dissipating heat
● Black masking effect
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm)
High-cleanliness ultra-thin high-viscosity PET single-sided adhesive STxx 5-30 PET Acrylic acid 1.2-8

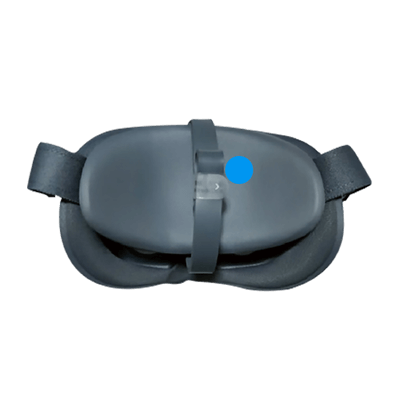

Packing

14 Packing

Packing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Packing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Packing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Packing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Single-sided removable bonding
● Excellent die-cutting performance and dimensional stability

Product advantages
● Silicone surface is suitable for temporary bonding of various plastics, tracing paper and other surfaces, removable, no residual glue, low noise
● Acrylic acid has good adhesion to most material surfaces.
Products Model Thickness (μm) Carrier Adhesive 180 ° peel force (N/cm) Static shear force (min)
AB tape AB1203TF/AB20115T 57/70 PET Silicone/Acrylic 2-4 Si >6 SUS ≥10000
Tissue  tape DS5xx Series 100-160 Tissue  Acrylic acid 4-10.4SUS ≥1440

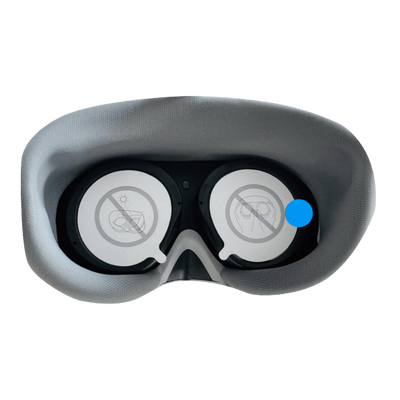

Shipment protection

15 Shipment protection

Shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Antistatic
● High transparency and good smoothness of rubber surface
● The viscosity is moderate

Product advantages
● It is not easy to stick dust
● Beautiful and practical
● Transport protection does not fall, easy to use and remove
Products Model Thickness (μm) Carrier Adhesive 180 ° SUS peel force (N/cm) Antistatic value (film resistance & adhesive resistance) Ω
Protective Film RW9213 50 PET Antistatic acrylic 45299 10⁶⁻¹¹
Application Products - Smart Watch
From the product design and development stage to the large-scale production process, every link fully considers the stringent needs and unique characteristics of the home appliance industry to ensure that the bonding solutions provided can not only accurately adapt to various complex application scenarios.
SOLUTION CONSULTATION →
Smart Watch
1 The FPC is bonded and fixed 2 Battery buffering and fixing 3 Main board shield cover conductive shield 4 Main board shield cover graphite heat radiation 5 Foam bonding 6 Middle frame encapsulation 7 OLED (organic light emit diode) screen air guide laminating and screen buff 8 Optical fit of the screen 9 Display module shipment protection
The FPC is bonded and fixed

1 The FPC is bonded and fixed

The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
The FPC is bonded and fixed
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Bending curved surface bonding garment sticking anti-rebound
● Strong adhesion, suitable for various surfaces
● High shear resistance, effectively prevent colloid displacement
● High temperature resistance of substrate-free adhesive film
● LSE tape for difficult-to-stick surfaces
Products Model Thickness (μm) Carrier Adhesive 20min 180 ° peeling force N/cm
High-performance PET double-sided tape P89721G/P89821G 50/120 PET Acrylic acid 45390
High-performance substrate-free double-sided adhesive tap N506/N513 60/130 / Acrylic acid 45419
High-performance LSE double-sided tape P8967LE 170 PET Acrylic acid 6.8(PP)
Battery buffering and fixing

2 Battery buffering and fixing

Battery buffering and fixing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Battery buffering and fixing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Battery buffering and fixing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Battery buffering and fixing
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● The bonding is firm
● Resistance to static shear
● Resistance to falling
● The pull-out tape permanently secures components in electronic equipment that need to be serviced or recycled
Products Model Thickness (μm) Carrier Adhesive 20min 180 ° peeling force N/cm
PET double sided tape P89721G/P89821G 50/120 PET Acrylic acid 4-14
Acrylic foam tape EPT A7xxBT/BR 200-1100 Acrylic closed-cell foam Acrylic acid 25-50
Easy pull tape CRN-DPxxxx 50-1000 / Rubber series 45396
Main board shield cover conductive shield

3 Main board shield cover conductive shield

Main board shield cover conductive shield
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Main board shield cover conductive shield
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Main board shield cover conductive shield
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Main board shield cover conductive shield
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Achieve good electromagnetic interference shielding
● Substrate-free conductive adhesive is available in a release paper version for easy die-cutting and application
● Woven substrates are suitable for curved surface bonding, processing and bonding with dimensional stability.
Products Model Thickness (μm) Carrier Adhesive 180 ° peel force (N/25mm) Z-axis vertical resistance (Ω/inch ²)
Conductive adhesive film ED0xH 10-100 No substrate Conductive acrylic 7-19 <0.03
Conductive non-woven tape EMx301 20-100 Conductive non-woven fabric Conductive acrylic 6-15 <0.02
Conductive plain woven tape EMx201 30-200 Conductive plain woven cloth Conductive acrylic 10-18 <0.05
Main board shield cover graphite heat radiation

4 Main board shield cover graphite heat radiation

Main board shield cover graphite heat radiation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Main board shield cover graphite heat radiation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Main board shield cover graphite heat radiation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Main board shield cover graphite heat radiation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Adapt to highly clean assembly environment
● Ultra-thin high viscosity, enhance the heat dissipation effect of graphite sheet, reduce the thickness of electronic equipment
Products Model Thickness (μm) Carrier Color Adhesive 20min 180 ° peeling force N/cm
High-clean PET double-sided tape DT76xxB 5-30 PET Black/Transparent/Black Translucent Acrylic acid 1.2-8

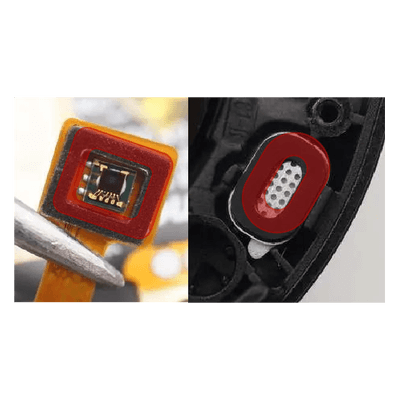

Foam bonding

5 Foam bonding

Foam bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Foam bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Foam bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Foam bonding
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Excellent wettability, suitable for porous foam bonding
● Curved surface clothing anti-rebound
● High resistance to dynamic shear and vibration
Products Model Thickness (μm) Carrier Adhesive 20min 180 ° peeling force N/cm
High-performance Tissue  double-sided adhesive tap T915 150 Tissue  Acrylic acid 10.7
Middle frame encapsulation

6 Middle frame encapsulation

Middle frame encapsulation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Middle frame encapsulation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Middle frame encapsulation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Middle frame encapsulation
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● IP X8 Sealed Waterproof
● Chemical resistant
● Excellent cushioning and shock resistance
● Reinforced film provides better die cutting and rework performance
Products Model Thickness (μm) Carrier Adhesive 20min 180 ° peeling force N/cm
PE foam tape DPxxxxB 150-500 PE foam Acrylic Adhesive >10
PE foam tape with reinforce film DS39-61xB  300 PE foam with reinforce film Acrylic Adhesive >5.2
Acrylic foam tape EPT A7040F-2D 400 Acrylic foam Acrylic Adhesive >12.5
OLED (organic light emit diode) screen air guide laminating and screen buff

7 OLED (organic light emit diode) screen air guide laminating and screen buff

OLED (organic light emit diode) screen air guide laminating and screen buff
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
OLED (organic light emit diode) screen air guide laminating and screen buff
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
OLED (organic light emit diode) screen air guide laminating and screen buff
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
OLED (organic light emit diode) screen air guide laminating and screen buff
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Excellent stress dispersion effect
● Lattice design of rubber surface, good exhaust performance
Series Crown material number Thickness (μm) Carrier Adhesive
Mesh PU foam tape CRU-DT15xxBG 150 PU Acrylic Adhesive
Optical fit of the screen

8 Optical fit of the screen

Optical fit of the screen
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Optical fit of the screen
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Optical fit of the screen
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Optical fit of the screen
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Suitable for G + In/On cell, G + OLED full fit structure
● Post-UV curable OCA
● High ink segment absorptivity before UV curing
● After UV curing, the bonding is firm and the bubble rebound is strongly inhibited.
● The elastic modulus of N-type colloid is low, which eliminates the influence of MURA.
Products Model Thickness (μm) Adhesive Yellow variable B * Haze Transmittance (%) Reliability
85℃X85% 40d		 Reliability
95℃ 40d		 Reliability
-40~80℃ 40d
OCA CR-934xN 100-200 Acrylic acid <0.4 <0.4 >90 PASS PASS PASS
Display module shipment protection

9 Display module shipment protection

Display module shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Display module shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Display module shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper
Display module shipment protection
● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Automatic exhaust
● Low pollution
● Stripping without residual glue
● Antistatic, with electrostatic adsorption function
● Ultra-low film tearing voltage
Products Model Color Thickness (μm) Carrier Adhesive Surface resistance (Ω) Film tearing voltage (V)
PU protective film PU55xT/G Transparent 60-85 PET PU Adhesive / /
Medium and high viscosity PU protective film PUxTx Transparent 60-85 PET PU Adhesive Membrane resistance 10 10 /
Antistatic PU protective film PUxTGB Transparent 60-85 PET PU Adhesive Adhesive resistance 10 10 ＜500
PU protective film with low film tearing voltage PU551GB-24 Transparent 60 PET PU Adhesive Adhesive resistance 10 10 150 (AGC module)
Related Recommendations
Video Recommendation
Recommended Reading
QUICK LINK
Home
Solutions
Products
About Us
OEM Service
News
Contact Us
Download
SOLUTIONS
Automotive
Consumer electronics
Green energy
Home appliances
Internet of things (IoT)
Home living
Innovative packaging
Transportation
Industrial manufacturing
Others
OUR PRODUCT
Industrial Adhesive Tapes
Electronic Grade Adhesive Tapes
Functional Films
CONTACT US
TEL:
+86-0752-7799636，+86-0752-7799626
+86-0757-85636780，+86-0757-85969650

E-Mail: ada@fsmaztape.com



Mobile Phone:
+86-13826233179
+86-18320162831
Copyright © 2026Guangdong Kunpeng New Materials Co., Ltd. | Design   privacy policy   Sitemap   Mail
