Explore adhesive material applications in innovative packaging industry

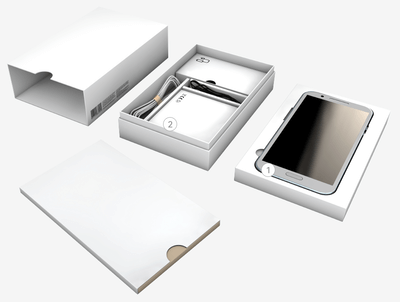

Application Scenarios - Packaging of electronic products

From the product design and development stage to the large-scale production process, every link fully considers the stringent needs and unique characteristics of the home appliance industry to ensure that the bonding solutions provided can not only accurately adapt to various complex application scenarios.

SOLUTION CONSULTATION →

1 Removable packaging material for electronic product 2 Packaging materials for electronic products

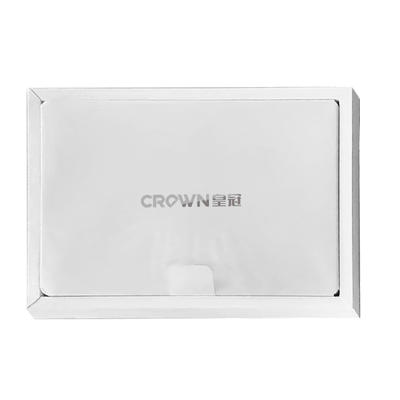

1 Removable packaging material for electronic product

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Special differential belt structure design

● Silicone surface: low stickiness, removable, non-stick paper

● Acrylic adhesive surface: it has high adhesive strength to the back pastes made of various materials, and can be fitted without warping

Products	Thickness (μm)	Colour	Adhesive	Substrates
EPT	400/640/1100	White	Acrylic	Acrylic Foam

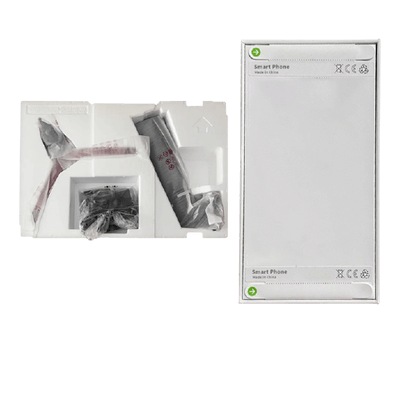

2 Packaging materials for electronic products

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● The bonding is firm and the fitting is obedient

● Excellent temperature resistance and aging resistance, can be firmly bonded under various environmental conditions

● Excellent resistance to static stress and dynamic stress, can resist a certain amount of vibration and impact, avoid bonding failure and warping during transportation.

Products	Model	Adhesive	Thickness (μm)	180 ° peel force (N/cm)	Static shear force (min)	Remark
Double-sided tissue tape	T9155	Acrylic glue	150	≥7.5	≥1440	High viscosity, durable and firm bonding, no warping High initial adhesion, good wettability, and rapid bonding effect
Double-sided PET tape	P8972G	Acrylic glue	50	≥4.5	≥1440	Excellent dimensional stability, good die-cutting
Substrate-free tape	N506	Acrylic glue	60	≥5.2	10000	Structural design without Carrier, fit well Nvironment-friendly and easy to recycle

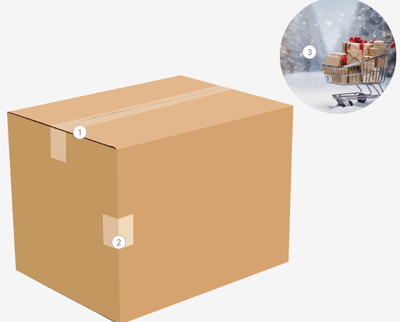

Application Scenarios - Sealed packing

From the product design and development stage to the large-scale production process, every link fully considers the stringent needs and unique characteristics of the home appliance industry to ensure that the bonding solutions provided can not only accurately adapt to various complex application scenarios.

SOLUTION CONSULTATION →

1 General sealed packing 2 Edge packaging is scratch-resistant 3 Sealed packing in cold area

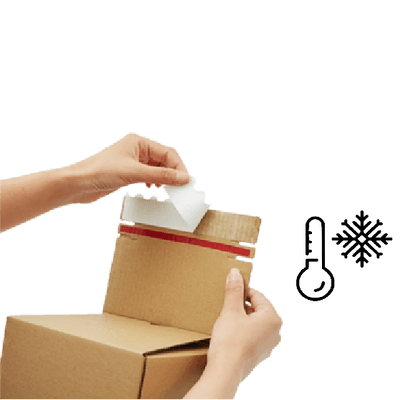

1 General sealed packing

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● High initial adhesion, can achieve fast bonding effect

● Excellent bonding performance and a certain degree of aging resistance, to ensure long-term sealing firm.

● Special lace structure design is optional for easy operation

Product category	Model	Adhesive	Thickness (μm)	180 ° peel force (N/cm)	Static shear force (min)	Characteristic
Double-sided tissue tape	DS513	Acrylic glue	160	≥6.3	≥1440	Has bet adhesive force to various material
Double-sided tissue tape	DS613	Acrylic glue	160	≥5.9	≥1440	Good adhesion to a variety of surfaces including LSE material
Double-sided tissue tape	T915	Acrylic glue	150	10.7	10000	Improved bonding strength and better performance
One-sided kraft paper tape	KT9	Hot melt adhesive	120	Summer: ≥ 6.3 Winter: ≥ 5.5	Summer: ≥ 120 Winter: ≥ 60	One-side

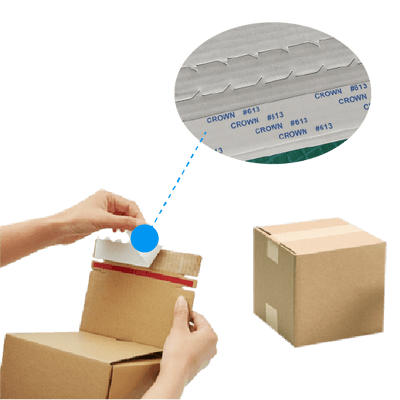

2 Edge packaging is scratch-resistant

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Have certain waterproof performance

● Strong viscosity

● High tensile strength

● Good retention

● No edge warping

● And that weather resistance is stable

Products	Model	Adhesive	Thickness (μm)	180 ° peel force (N/cm)	Static shear force (min)
One-sided kraft paper tape	KT9	Hot melt adhesive	120	Summer: ≥ 6.3 Winter: ≥ 5.5	Summer: ≥ 120 Winter: ≥ 60

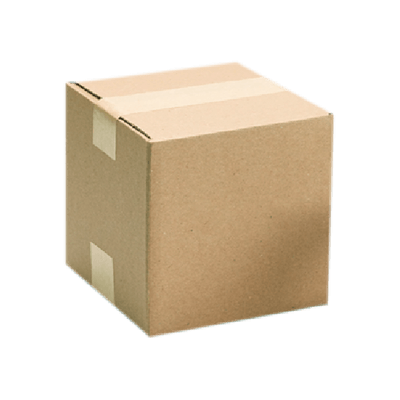

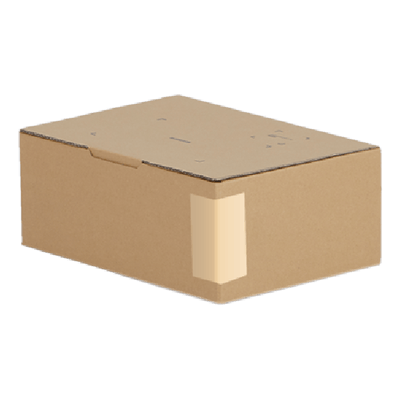

3 Sealed packing in cold area

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Excellent cold resistance, can meet the application requirements at -15 ℃

● High initial adhesion, can achieve fast bonding effect

● Excellent bonding performance, durable and firm bonding

Products	Model	Adhesive	Thickness (μm)	180 ° peel force (N/cm)	Static shear force (min)	Remark
High cold-resistant foam tape	DP1005PWT-TL	Acrylic glue	600	Inside: ≥ 6.7 Outside: ≥ 5.1	≥600	The foam Carrier tape has excellent conformability and cushioning property Suitable for corrugated box bonding
High cold resistant Tissue tape	DS703PNH	Acrylic glue	160	Inside: ≥ 6.7	≥20	Good permeability, high initial viscosity Good shear strength, not easy to crack and fall off after bonding Suitable for bonding kraft cartons

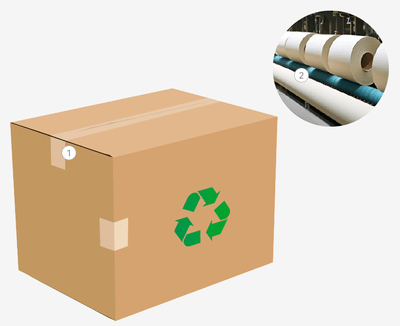

Application Scenarios - Environmentally friendly packaging

From the product design and development stage to the large-scale production process, every link fully considers the stringent needs and unique characteristics of the home appliance industry to ensure that the bonding solutions provided can not only accurately adapt to various complex application scenarios.

SOLUTION CONSULTATION →

1 Sealed packing in cold area 2 Paper mother coil fly-jointing

1 Sealed packing in cold area

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

Bio-based double-sided tape-Product features:

● 100% recycled PCR-PET was used as the substrate/release material

● The bio-based adhesive is used, and the bio-based content can reach more than 70 percent

● Excellent temperature resistance, anti-aging

● Meet the requirements of sustainable development

Substrate-Free Tape-Product Features

● Structural design without Carrier, fit well

● High viscosity, suitable for bonding of various materials to be pasted

● It has strong resistance to static stress and dynamic stress, and can resist certain vibration impact.

● Super aging resistance and temperature resistance

Products	Products	Adhesive	Carrier	Thickness (μm)	180 ° peel force (N/cm)	Static shear force (min)
Bio-based double-sided tape	CRT-DT050CB	Bio-based adhesive	PCR-PET	50	7.2	＞1440
Bio-based double-sided tape	CRT-DT100CB	Bio-based adhesive	PCR-PET	100	9.5	＞1440
Substrate-free tape	N506	Acrylic adhesive	/	60	≥5.2	10000
Substrate-free tape	N513	Acrylic adhesive	/	130	≥7.5	10000

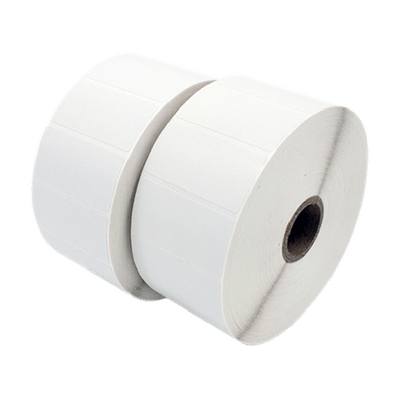

2 Paper mother coil fly-jointing

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Ood water solubility

● Excellent bonding properties

● Reliable web contact is provided during splicing while ensuring that large paper rolls are closed during transport and unreeling

Products	Model	Adhesive	Thickness (μm)	180 ° peel force (N/cm)	Annular initial adhesion (N)
Water-soluble tissue paper double-sided adhesive tap	WS0908L	Water soluble adhesive	85	≥2.4	≥5
