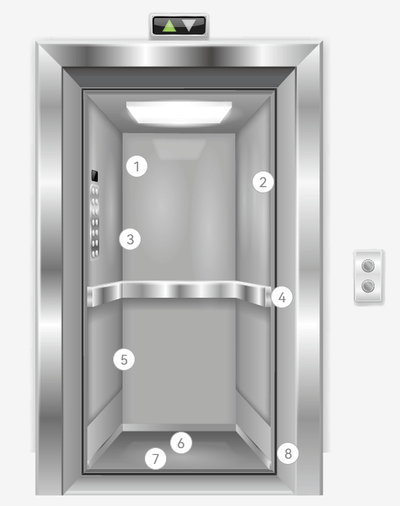

1 Fixing of elevator stiffeners 2 Mirror fixed 3 The decorative panel is fixed 4 Fixation of parts and trims 5 Door panel bonding 6 The bottom plate of the lift car is fixed 7 Ground bonding 8 Skirting edge strip bonding

1 Fixing of elevator stiffeners

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● The fixing of the reinforcing rib can effectively prevent the deformation of the car wall caused by external force impact.

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate *(180 stripping, 20min) N/24mm**	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm,20min)N**	Structure	Release layer material
PE foam tape	DP1010B/W	PE foam	Black/white	1100	≥13	≥1440	/	Three floors	Release paper
EPT	A7080BR	Acrylic foam	Black	800	≥27	≥1440	≥300	Single layer	PE red film
EPT	A7110BT-1DL	Acrylic foam	Black	1100	≥50	/	≥400	Three floors	PET release film
EPT	A7110WT-1D	Acrylic foam	White	1100	≥45	≥10000	≥400	Three floors	PET release film
EPT	A7064WR	Acrylic foam	White	640	≥32	≥1440	≥300	Single layer	PE red film
EPT	A7120WR	Acrylic foam	White	1200	≥32	≥1440	≥300	Single layer	PE red film
EPT	A7200WR	Acrylic foam	White	2000	≥25	≥1440	≥300	Single layer	PE red film
EPT	A7080FR	Acrylic foam	Grey	800	≥35	≥1440	≥300	Single layer	PE red film
EPT	A7040FR	Acrylic foam	Grey	400	≥30	≥1440	≥300	Single layer	PE red film

2 Mirror fixed

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Safe and firm bonding of mirror surfaces

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate (180 ° peeling, 20min) N/24mm	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm,20min)N**	Structure	Release layer material
PE foam tape	DP1010B/W	P E foam	Black/white	1100	≥13	≥1440	/	Three floors	Release paper

3 The decorative panel is fixed

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Secure and secure bonding of decorative panels

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate (180 ° peeling, 20min) N/24mm	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm20min)N**	Structure	Release layer material
A7040FR-2D	EPT	Acrylic foam	Grey	400	≥32	≥1440	≥400	Three floors	PET release film
7965G	PET double sided tape	PET	Transparent	205	≥17	≥1440	/	Three floors	Brown Glassine paper

4 Fixation of parts and trims

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Securing components and trims for the long term

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate *(180 stripping, 20min) N/24mm**	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm,20min)N**	Structure	Release layer material
PE foam tape	DP1010B/W	PE foam	Black/white	1100	≥13	≥1440		Three floors	Release paper
EPT	A7064WR	Acrylic foam	White	640	≥32	≥1440	≥300	Single layer	PE red film

5 Door panel bonding

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Securely fix the car floor

Model	Products	Carrier	Color	Thickness (μm)	Adhesion to steel plate (180 ° peeling, 20min) N/24mm	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm20min)N**	Structure	Release layer material
P8967LEH	Thin double-sided tape	PET	Transparent	170	≥17	≥1440	/	Three floors	Release paper

6 The bottom plate of the lift car is fixed

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Securely fix the car floor

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate *(180 stripping, 20min) N/24mm**	Static shear force *24mm24mm)min**	Dynamic shear force *(24mm24mm,20min)N**	Structure	Release layer material
EPT	A7040FR	PE foam	Grey	400	≥30	≥1440	≥300	Single layer	PE red film
EPT	A7064FR	Acrylic foam	Grey	640	≥30	≥1440	≥300	Single layer	PE red film
EPT	A7120FR	Acrylic foam	Grey	1200	≥35	≥1440	≥300	Single layer	PE red film
EPT	A7150FR	Acrylic foam	Grey	1500	≥35	≥1440	≥300	Single layer	PE red film

7 Ground bonding

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Fixed floor material or PVC floor

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate *(180 stripping, 20min) N/24mm**	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm20min)N**	Structure	Release layer material
PVC floor tape	T914/T914NS	Non-woven fabric	Transparent	140	≥23	10000	/	Three floors	Release paper

8 Skirting edge strip bonding

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

: ● Acrylic pressure-sensitive adhesive
● Acrylic foam
● Acrylic pressure-sensitive
● Release paper

Product Features

● Safely and securely bonded skirting strip

Products	Model	Carrier	Color	Thickness (μm)	Adhesion to steel plate *(180 stripping, 20min) N/24mm**	Static shear force *(24mm24mm)min**	Dynamic shear force *(24mm24mm20min)N**	Structure	Release layer material
EPT	A7080BR3-3D	Acrylic foam	Black	800	≥35	≥1440	≥300	Single layer	PE release film
