Ultra-thin High-adhesion Tape with High Cleanliness

This product is an industrial adhesive tape composed of an ultra-thin PET backing coated evenly on one or both sides with acrylic-based adhesive, and laminated with a release liner. It is primarily used for bonding graphite heat spreaders in the smartphone industry.
Features
● Produced in a Class 1000 cleanroom environment, ensuring high product cleanliness.
● Uses a high-adhesion acrylic adhesive with strong bonding power for various materials.
● Ultra-thin design with high tensile strength, excellent insulation, and low thermal resistance.
● Excellent resistance to low temperatures, weather, and warping, with good conformability to the bonded surfaces.
● Special designs can be added based on customer requirements, such as fingerprint-resistant surfaces.

Applications

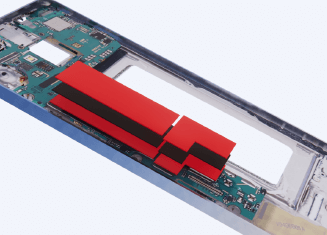

Surface protection for smartphone graphite heat dissipation sheets
Surface protection for smartphone graphite heat dissipation sheets

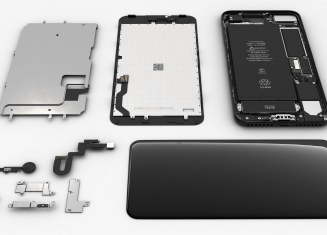

Bonding and securing graphite heat dissipation sheets for laptops
Bonding and securing graphite heat dissipation sheets for laptops

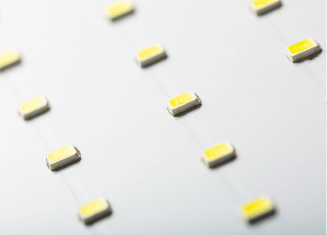

Bonding and securing graphite heat dissipation sheets for LED lights
Bonding and securing graphite heat dissipation sheets for LED lights

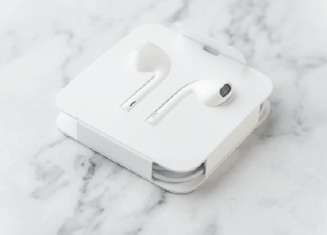

Securing headphone cables with bundling
Securing headphone cables with bundling
Product Series
Series   Model  Thickness
(μm)
Color Initial adhesion
(mm)
Adhesion
(gf/25mm)
Holding power
(hour)
ST single-sided adhesive series   ST3600 6±1 Transparent >180 ≥300 ≥24
ST single-sided adhesive series ST36006F2 6±2 Matte black >180 ≥350 ≥24
ST single-sided adhesive series ST3601F 10±1 Matte black >180 ≥500 ≥24
ST single-sided adhesive series ST3602F3 20±2 Matte black >180 ≥700 ≥24
ST single-sided adhesive series ST3603F8 30±3 Matte black >180 ≥1000 ≥24
ST single-sided adhesive series ST3605F1 50±5 Matte black >180 ≥1000 ≥24
ST single-sided adhesive series ST3601SB 10±1 Black translucent >180 ≥500 ≥24
ST single-sided adhesive series ST3602SB 20±2 Black translucent >180 ≥600 ≥24
ST single-sided adhesive series ST3603B2 30±3 Black >180 ≥500 ≥24
ST single-sided adhesive series ST3602FJ 20±2 Matte Black (PI) >180 ≥500 ≥24
ST single-sided adhesive series ST3603FJ 30±3 Matte Black (PI) >180 ≥800 ≥24
ST single-sided adhesive series ST3604FJ 40±4 Matte Black (PI) >180 ≥1200 ≥24
ST single-sided adhesive series ST36048FJ 48±4 Matte Black (PI) >180 ≥1200 ≥24
ST single-sided adhesive series ST3605FJ2 50±5 Matte Black (PI) >180 ≥1200 ≥24
ST single-sided adhesive series ST7601 10±2 Transparent >180 ≥600 ≥24
ST single-sided adhesive series ST7602 20±2 Transparent >180 ≥600 ≥24
ST single-sided adhesive series ST7603 30±3 Transparent >180 ≥800 ≥24
ST single-sided adhesive series ST7603F 30±3 Black matte >180 ≥800 ≥24
ST single-sided adhesive series ST7603W White >180 ≥800 24
ST single-sided adhesive series ST7605B 50±5 Black >180 ≥1500 ≥24
ST single-sided adhesive series ST7605B 50±3 Black >180 ≥1200 ≥24
DT double-sided adhesive tape series DT3200 6±1 Transparent >180 ≥600 ≥24
DT double-sided adhesive tape series DT3201 10±1 Transparent >1 80 ≥1000 ≥24
DT double-sided adhesive tape series DT3202 20 ±2 Transparent >180 ≥1200 ≥24
DT double-sided adhesive tape series DT3203 30±3 Transparent >180 ≥1300 ≥24
DT double-sided adhesive tape series DT3201B 15±2 Black translucent >180 Low adhesion surface: ≥ 700
High adhesion surface: ≥ 1200
≥18
DT double-sided adhesive tape series DT32012SW 12±1 White >180 Low adhesion surface: ≥ 700
High adhesion surface: ≥ 1200
≥18
DT double-sided adhesive tape series DT3202W 20±2 White >180 1200  ≥24
DT double-sided adhesive tape series DT3205W1 50±5 White 80  ≥1500 24
DT double-sided adhesive tape series DT7600 7±1 Transparent >180 ≥600 ≥24
DT double-sided adhesive tape series DT7601 10±1 Transparent >180 >1000 ≥24
DT double-sided adhesive tape series DT7602 20±2 Transparent >180 ≥1200 ≥24
DT double-sided adhesive tape series DT7603 30 ±3 Transparent >180 ≥1300 24
DT double-sided adhesive tape series DT7604 40±3 Transparent >180 ≥1400 ≥24
DT double-sided adhesive tape series DT7605 50±4 Transparent >180 ≥1500 z24
DT double-sided adhesive tape series DT7608 80±5 Transparent >180 ≥1800 ≥24
DT double-sided adhesive tape series DT7610 100±8 Transparent >180 ≥2500 ≥24
DT double-sided adhesive tape series DT7601SB2 10+2/-1 Black translucent >180 ≥800 ≥24
DT double-sided adhesive tape series DT7602SB 20±2 Black translucent >180 ≥1250 ≥24
DT double-sided adhesive tape series DT7603B 30±3 Black >180 ≥1300 =24
