High-performance Adhesive Transfer Tape

Pure adhesive film products, featuring excellent anti-warping properties, high bonding strength, and strong cohesive force.
Features
● High adhesion
● Good impact resistance, high push-out and high shear strength
● Strong temperature and aging resistance
● De-plasticized, more environmentally friendly
● Thickness options: 60-130μm

Applications

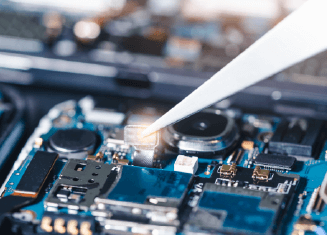

Bonding of electronic components and panels
Bonding of electronic components and panels

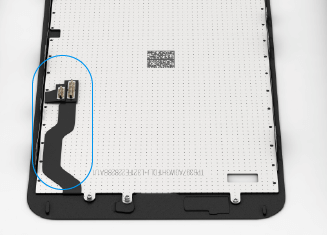

FPC fixation and bonding on curved or bent areas
FPC fixation and bonding on curved or bent areas
Attachment of bases and anti-vibration foam
Attachment of bases and anti-vibration foam
Product Series
Products Model Thickness (μ) Specification (mm) Product characteristics
High-performance substrate-free adhesive tap N506 60 900 * Strong initial adhesion * Good rebound resistance * Good shear resistance * Excellent high temperature resistance * Stable overtemperature reflow soldering performance
High-performance substrate-free adhesive tap N506N 60 1200 (other special specifications can be ordered according to MOQ) * Strong initial adhesion * Good rebound resistance * Good shear resistance * Excellent high temperature resistance * Stable overtemperature reflow soldering performance
High-performance substrate-free adhesive tap N506H 60 1200 (other special specifications can be ordered according to MOQ) * Strong initial adhesion * Good rebound resistance * Good shear resistance * Excellent high temperature resistance * Stable overtemperature reflow soldering performance
High-performance substrate-free adhesive tap N513 130 900 * Strong initial adhesion * Good rebound resistance * Good shear resistance * Excellent high temperature resistance * Stable overtemperature reflow soldering performance
High-performance substrate-free adhesive tap N513N 130 1200 (other special specifications can be ordered according to MOQ) * Strong initial adhesion * Good rebound resistance * Good shear resistance * Excellent high temperature resistance * Stable overtemperature reflow soldering performance
High-performance substrate-free adhesive tap N513H 130 1200 (other special specifications can be ordered according to MOQ) * Strong initial adhesion * Good rebound resistance * Good shear resistance * Excellent high temperature resistance * Stable overtemperature reflow soldering performance
